عربي What to Look for in a Paper Cup Machine Before You Buy
Publish Time:
Author:
Mingguo
Visit: 23
Demand for paper cups keeps growing. Coffee shops, bubble tea chains, fast food outlets—they all need cups. But if you are sourcing a paper cup machine for your brand or factory, the real question is: most machines on the market look similar on the surface. Prices range from modest to substantial. What actually makes the difference?
A paper cup machine is a long-term investment. Pick the wrong one, and you deal with high scrap rates, frequent downtime, and maintenance costs that add up fast. Understanding what makes a paper cup machine reliable and efficient matters more than just comparing price tags.
The production process for a paper cup machine involves several steps: feeding the paper blank, preheating, forming the side seam, curling the rim, attaching the bottom, and ejecting the finished cup. At high speeds, keeping every step consistent is where good machines separate from average ones.
Key factors to evaluate:
Speed vs. stability – A machine rated for 200 cups per minute that stops frequently may deliver less usable output than a slower but more stable unit
Mold change capability – Switching between cup sizes should be reasonable, not a half-day project
Maintenance demands – Traditional cam-driven designs need regular lubrication; oil leaks can ruin batches

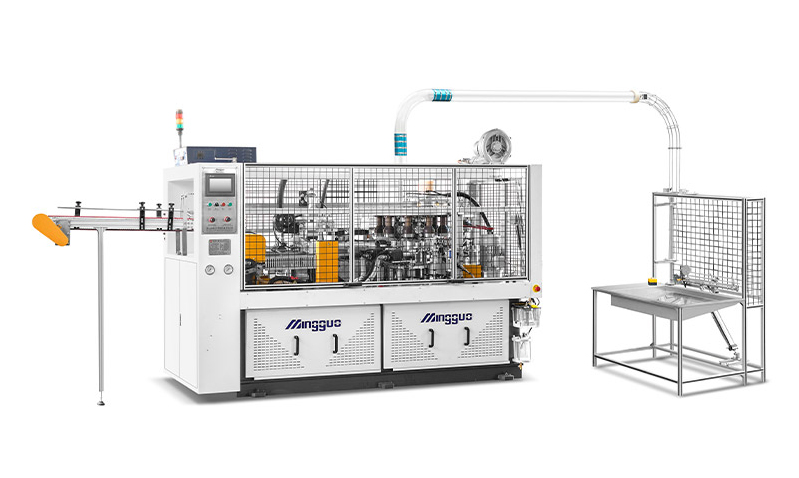

If you are comparing paper cup machines on the market, this model is worth a closer look. Its specifications are built around actual production needs, not just numbers on a sheet.
| Specification | Details |
|---|---|
| Cup Size Range | 4–16oz (100–450ml), molds exchangeable |
| Top Diameter | 55–100 mm |
| Bottom Diameter | 55–75 mm |
| Cup Height | 60–135 mm |
| Paper Stock | 150–350 GSM, single/double PE or PLA coated |
| Production Speed | 180–200 cups/min |
| Voltage | 380V 50Hz 3-Phase |
| Average Power | 16KW |
| Air Supply | 0.6–0.8 Mpa, 0.4 m³/min |
| Total Weight | 3000 KG |
What these numbers tell you:
Covers the most common cup sizes in the market
Handles both standard PE-coated paper and PLA-coated material
Mid-to-high speed range suitable for steady daily production
Plenty of paper cup machines claim to be servo-driven. The difference is in how many stations actually use independent servo control. This paper cup machine uses nine separate servo motors.
What this means for your production:
Each station adjusts independently through the control panel
No mechanical cam shaft—timing changes don’t require wrench work
Completely oil-free motion system
Less daily maintenance
Zero risk of oil contamination on paper blanks
The side seam is sealed with a servo-controlled ultrasonic welding system. High-frequency vibrations melt the PE or PLA coating on the paper, fusing the layers without adhesive. The weld stays consistent across different production speeds.
A rough cup rim is immediately noticeable to the end user. This machine uses a two-times curling device—pre-curl then final curl—for a smoother, more rounded rim.
At higher speeds, paper can build up static and heat, sometimes causing feeding issues. An automatic water spray device is available as an option. It helps control the paper surface condition when running consistently at top output.
A paper cup machine is only as good as the support behind it. Here is what comes with this unit.
Warranty:
One full year from the shipment date
Entire machine covered
Wearing parts supplied at no charge for the first year
On-Site Support:
Technicians available for installation and training
Daily rate for technician plus travel and accommodation
Training continues until operators are comfortable
Documentation:
Machine adjusted and tested one week before shipping
Detailed user guide with installation and troubleshooting steps
Choosing a paper cup machine is not just about picking equipment. It is about setting up your production line for consistent output, manageable maintenance, and the flexibility to handle different cup sizes as your business grows.
What to take away:
Fully servo-driven design reduces maintenance and eliminates oil contamination
180–200 cups/min speed with 4–16oz cup range covers most common needs
One-year warranty with free wearing parts for the first year
On-site training available until operators are fully comfortable
Paper cups specifications:
200 pcs/min
4-16oz(100-450mI) (mold exchangeable)
Paper cups specifications:
4-16oz （can be customized by max.26oz）
(100-450ml)(mold exchangeable)
Top:55-105mm
Height:60-135mm
Bottom:55-75mm
Paper cups specifications:
(100-350ml)(mold exchangeable)
Top: 55-90mm
Height: 60-110mm
Bottom: 40-65mm
