How Does a Paper Cup With Handle Machine Streamline Your Production?

Publish Time: 2026-07-29 16:36 Author: Mingguo Visit: 3

You’re running a disposable cup manufacturing line—serving coffee shops, tea chains, or catering businesses. The cups need to be consistent, durable, and produced at a speed that keeps up with demand. A paper cup with handle machine automates the entire process: feeding the paper, sealing the bottom, forming the cup body, applying the handle, and collecting the finished product—all in one continuous operation. This guide covers the key specifications, production capabilities, automation features, and maintenance requirements of the MG-HC600S. No fluff—just the practical information you need to evaluate this equipment for your production line.

What the MG-HC600S Actually Does

The MG-HC600S is an integrated automatic paper cup forming machine that combines multiple processing steps into a single, continuous workflow. It takes PE-coated paper—either single or double-sided—and transforms it through a series of operations: paper feeding, sealing, bottom cutting, lubricating, heating, knurling, curling, and collecting. The machine is equipped with a handle applicator that automatically cuts and seals handles onto the cups, eliminating the need for a separate handling process. This integration saves significant time and labor compared to manual or semi-automatic methods.

From Paper Roll to Finished Cup

The process starts with a roll of PE-coated paper fed into the machine. The paper passes through stations that cut, seal, and form the cup body. The bottom is cut and sealed using ultrasonic technology, and the cup rim is curled for a smooth drinking edge. The handle applicator then cuts and seals the handle in place. Finally, the finished cups are collected for packaging.

Multi-Station Design for Efficiency

The machine features a multi-station design that allows multiple operations to occur simultaneously. This parallel processing is what enables the high production speed—each station performs its function on a different cup at the same time, keeping the line moving continuously without bottlenecks.

Production Speed and Cup Size Flexibility

Production speed directly impacts your ability to fulfill orders. The MG-HC600S achieves a manufacturing speed of 100 cups per minute. At this rate, a single machine can produce 6,000 cups per hour—enough to supply multiple coffee shop locations or fulfill large catering orders.

Cup Size Range

The machine produces cups in the 4-12oz (100-350ml) range, with interchangeable molds. The top diameter ranges from 55-90mm, height from 60-110mm, and bottom from 40-65mm. This range covers most standard beverage cup sizes—from small espresso cups to medium-sized cold drink cups.

Mold Exchangeability

The tooling is mold exchangeable, meaning you can switch between different cup sizes without replacing the entire machine. This flexibility allows you to produce multiple cup sizes on the same equipment, reducing the need for multiple dedicated machines.

Paper Specifications and Material Compatibility

The MG-HC600S processes 150-350 GSM single or double PE coated paper. Double PE coating provides better moisture resistance, making cups suitable for both hot and cold beverages. Single PE coating is sufficient for many cold drink applications and offers a lower material cost.

PE Coating Options

Double PE coated paper has polyethylene on both sides—the inside layer protects against liquid absorption, and the outside layer provides a smooth surface for printing. Single PE coating has polyethylene only on the inside. The choice depends on your application: hot drinks, cold drinks, and the desired shelf life of the cups.

Material Handling Features

The machine includes a servo motor for bottom paper feeding, ensuring precise material positioning. The bottom paper feeding device and paper cup feeding system work together to maintain consistent material flow. This precision is critical for maintaining cup quality and minimizing waste.

Key Technical Specifications

Specification	MG-HC600S	Why It Matters
Cup size range	4-12oz (100-350ml)	Covers standard beverage sizes
Top diameter	55-90mm	Accommodates different cup styles
Height	60-110mm	Flexibility for various cup heights
Bottom diameter	40-65mm	Matches standard cup bases
Production speed	100 pcs/min	High throughput for commercial production
Paper weight	150-350 GSM	Supports single or double PE coated paper
Voltage	380V 50Hz 3-Phase	Standard industrial power requirement
Average power	7.5KW	Energy consumption for cost planning
Air supply	0.4MPa, 0.4 m³/min	Compressed air requirement
Weight	2550 KG	Installation and floor loading
Dimensions	2900×1350×1850 mm	Floor space requirement

Automation and Labor Savings

The MG-HC600S is a fully integrated automatic machine that combines all processing procedures in one unit. This level of automation significantly reduces labor requirements—operators monitor the machine rather than performing manual steps. The handle applicator completes handle cutting and sealing automatically, saving additional time and manpower.

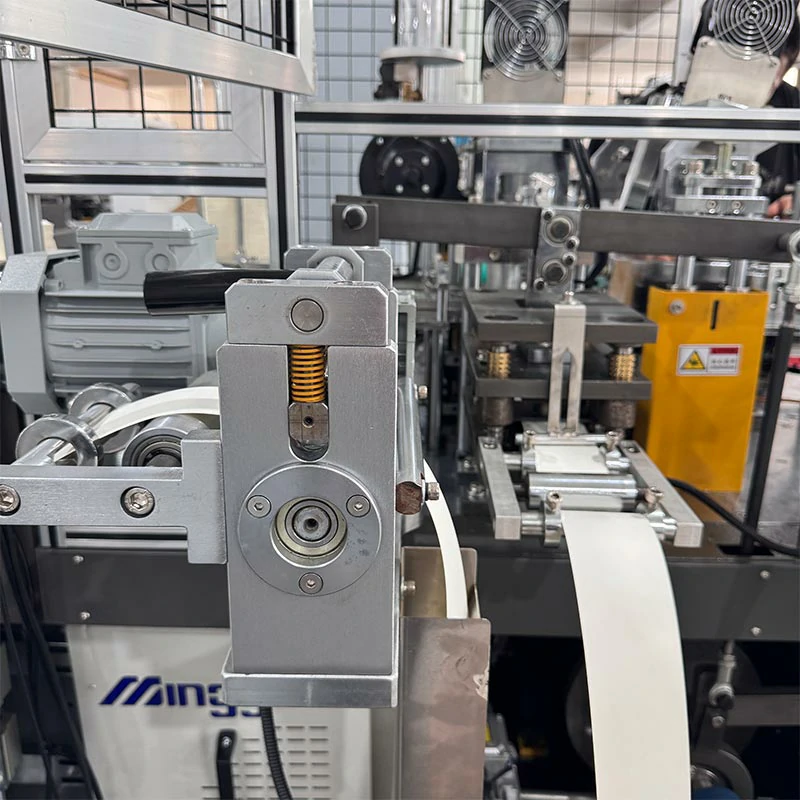

Integrated Handle Application

The handle applicator is a standout feature. Handles are cut and sealed onto the cups automatically as part of the production flow. This eliminates the need for a separate handle attachment station or manual handle application—a common bottleneck in cup production lines.

Double Ultrasonic Sealing

The machine uses double ultrasonic devices for paper cup sealing. Ultrasonic sealing creates strong, consistent bonds without the need for adhesive, resulting in clean, reliable seals that don’t leak or fail.

Maintenance and Warranty

Proper maintenance keeps the machine running at peak performance. Mingguo provides a one-year warranty from the shipment date. The warranty covers the entire machine, with wearing parts provided at no charge during the warranty period.

Routine Maintenance Schedule

The machine should be maintained in strict compliance with the maintenance guidance. Key maintenance tasks include: cleaning every component carefully; maintaining a fixed schedule to clean and wipe the machine, removing greasy dirt from paper, die, and roller; keeping the machine free from paper scraps, dust, and plastic debris; using glycerol to lubricate the entire machine.

After-Sales Support

Mingguo provides comprehensive after-sales support. A user guide is included to assist with installation and adjustment. The machine is adjusted one week prior to delivery to ensure it’s in perfect condition. Technicians are available to guide installation and adjustment on-site. Free training is available and continues until the operator fully understands machine operation and maintenance.

What Buyers Ask About Handle Cup Machines

What cup sizes can this machine produce?
The MG-HC600S produces cups in the 4-12oz (100-350ml) range with interchangeable molds. Top diameter ranges from 55-90mm, height from 60-110mm, and bottom from 40-65mm.

How fast does it run?
The machine achieves a production speed of 100 cups per minute, producing 6,000 cups per hour at full capacity.

What paper types does it support?
It processes 150-350 GSM single or double PE coated paper. Double PE coating provides better moisture resistance for hot beverages.

What maintenance is required?
Routine maintenance includes regular cleaning of all components, removing grease and debris, keeping the machine free of paper scraps and dust, and lubricating with glycerol. A one-year warranty covers the entire machine with wearing parts provided at no charge.

Get the Right Cup Machine for Your Production Line

Selecting a paper cup with handle machine comes down to three factors: production speed (match your volume), cup size range (match your market), and automation level (match your labor requirements). Request a quote or machine consultation → —Mingguo‘s team can help you select the right configuration for your specific production requirements.

This article was written with the assistance of AI to organise technical data from Mingguo’s product documentation and industry standards.

Mingguo is a manufacturer of paper cup making machinery with extensive experience in the industry. The MG-HC600S Paper Cup With Handle Machine is a newly developed machine from the three-turn-plate old type cup machine, achieving a manufacturing speed of 100 pcs/min. It features a multi-station design and produces single and double PE coated beverage cups, ice cream cups, coffee cups, bubble tea cups, and more. The integrated automatic machine combines all processing procedures: paper feeding, sealing, bottom cutting, lubricating, heating, knurling, curling, and collecting. Outfitted with a handle applicator, it completes handle cutting and sealing automatically. Applications include coffee shops, tea shops, and other beverage service venues. Connect with Mingguo to discuss your cup size requirements, production volume, and material specifications.
