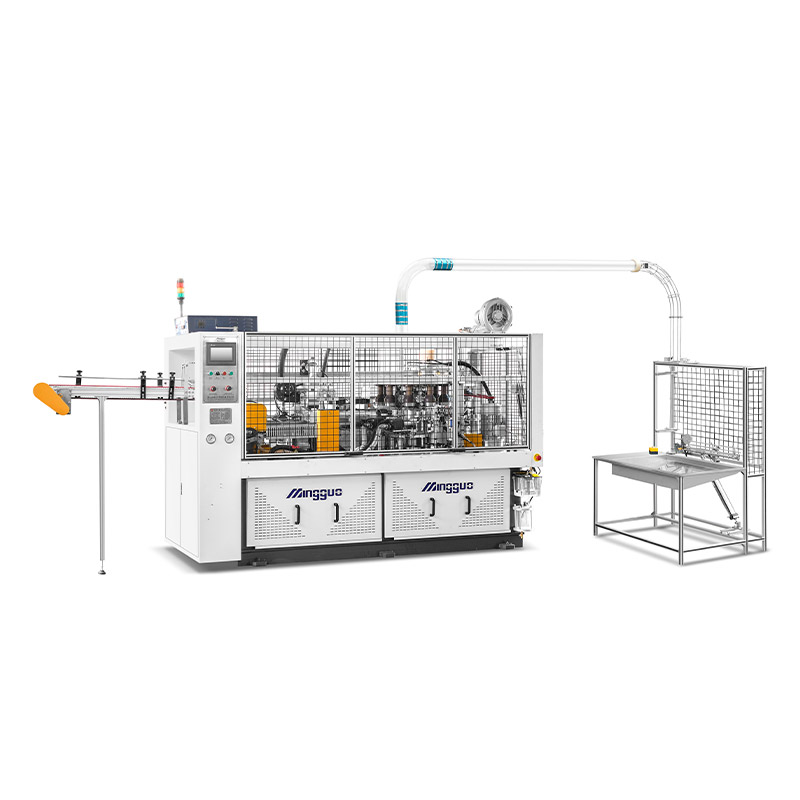

MG-G800-FS Full Servo Paper Cup Machine

Name: MG-G800-FS Full Servo Paper Cup Machine
Brand: Mingguo
SKU: 00150
Rating: 5.0 (125 reviews)

Specifications:

200 pcs/min

4-16oz(100-450mI) (mold exchangeable)

Inquire Now

Full servo paper cup machine with automatic water spray device

Main Parts

Product Specifications

Paper Cup Specification	4-16oz(100-450mI) (mold exchangeable) Top:55-100 mm Height:60-135mm Bottom:55-75mm
Paper Specification	150-350 GSM single/double PE/PLA coated paper
Production Capacity	180-200 pcs/min
Voltage	380V 50HZ 3Phases
Average Power	16KW
Air Supply Requirement	Compressed air:0.6-0.8Mpa,0.4m²/min
Total Weight	3000KG

Outstanding Advantages

Automatic water spray device(option)

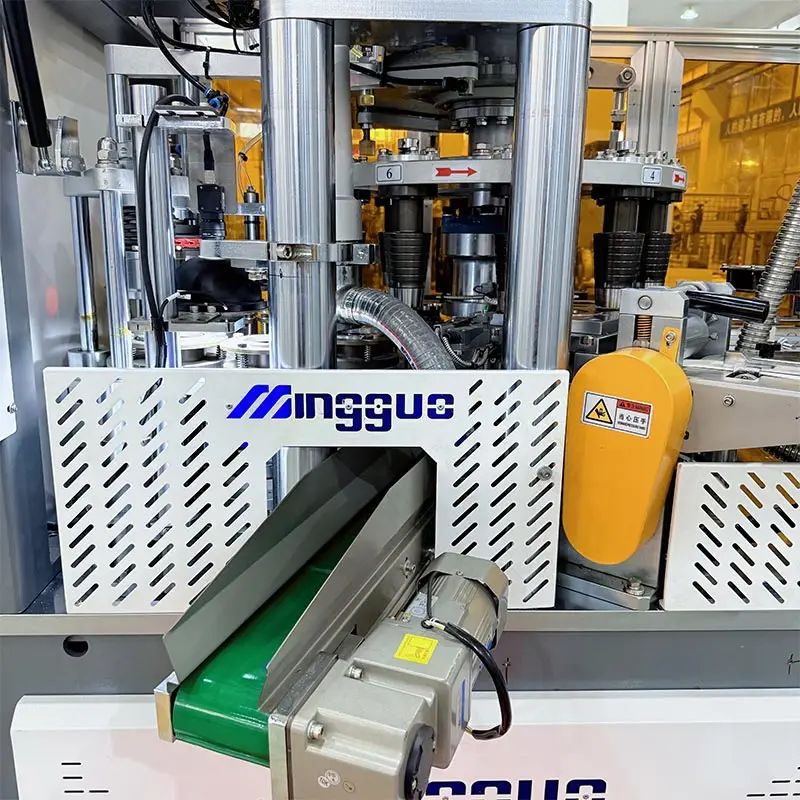

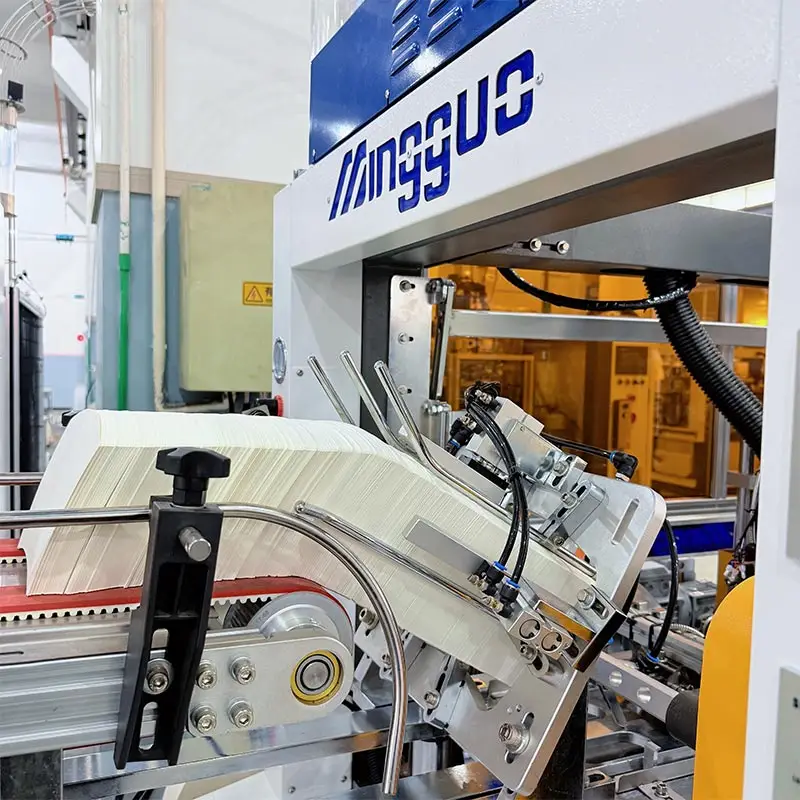

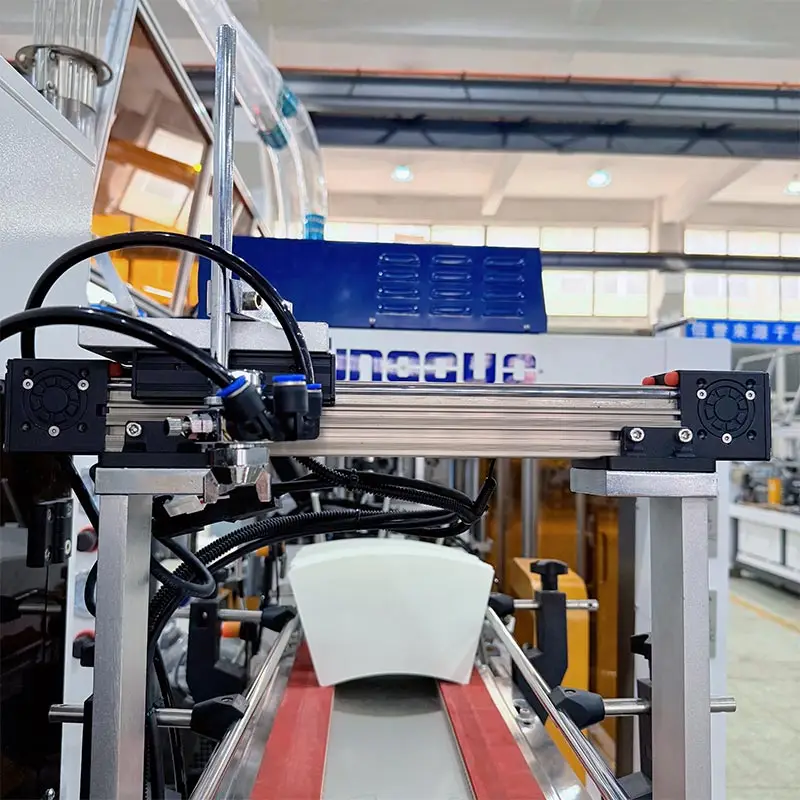

Auto paper feeding belt

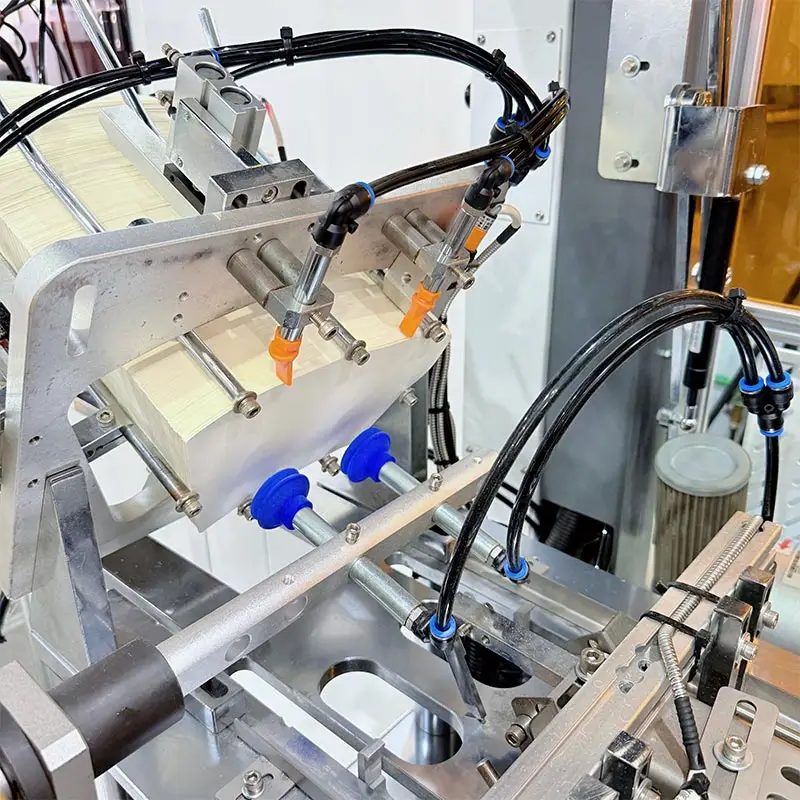

Automatic paper blank feeding and transfer unit

2 PCS preheating hot air

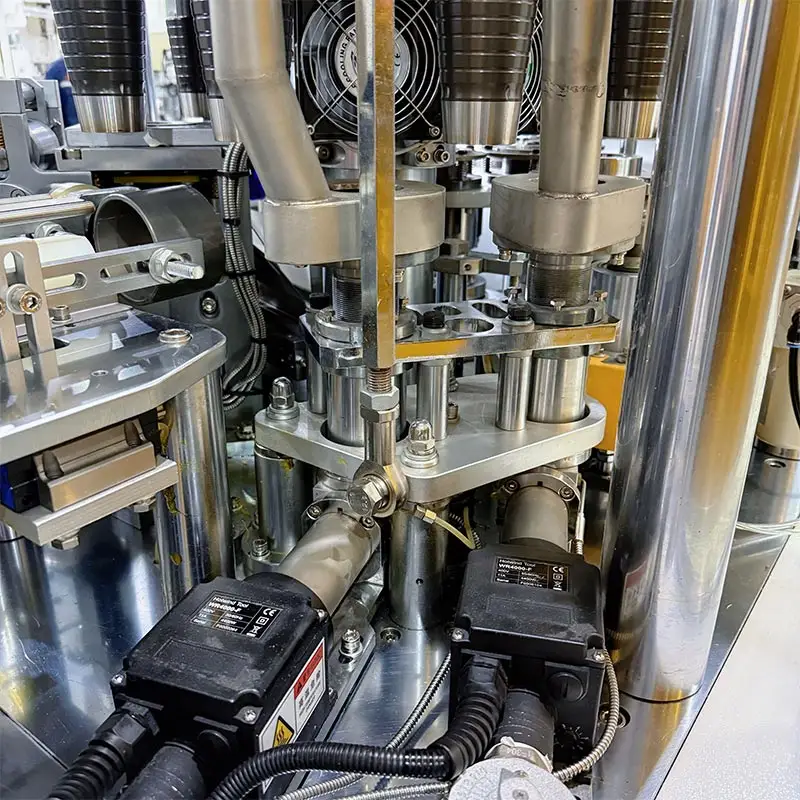

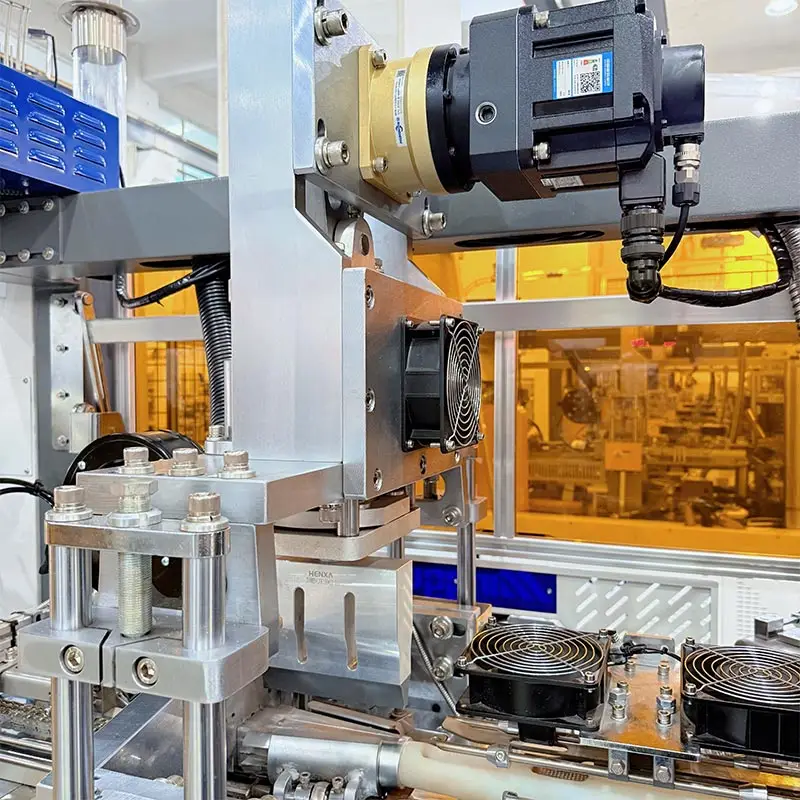

Servo-controlled ultrasonic welding system

Fixed Bottom Hot Air System,for extending the service life of the machine

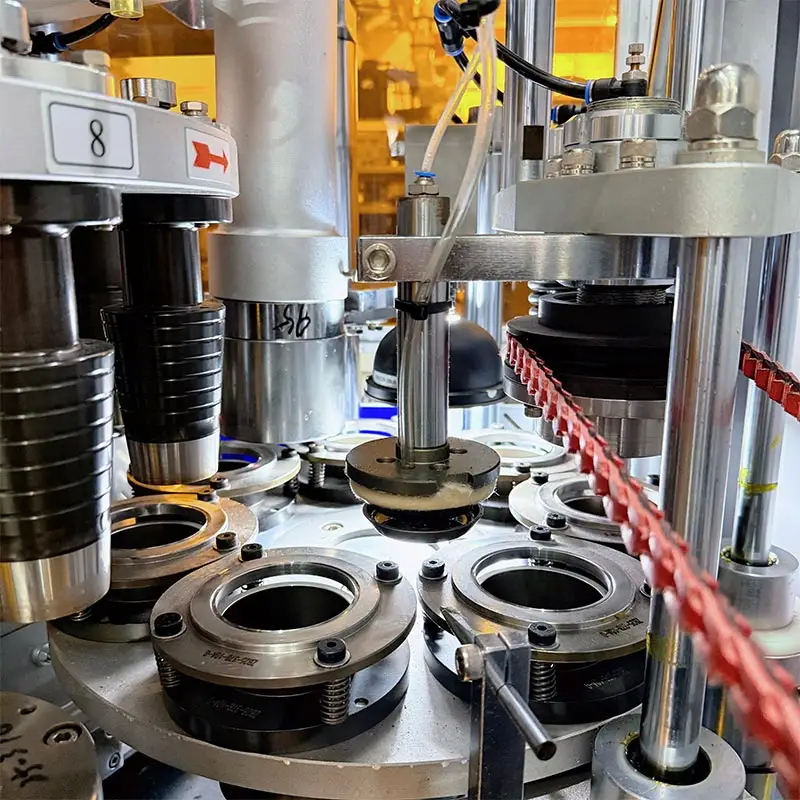

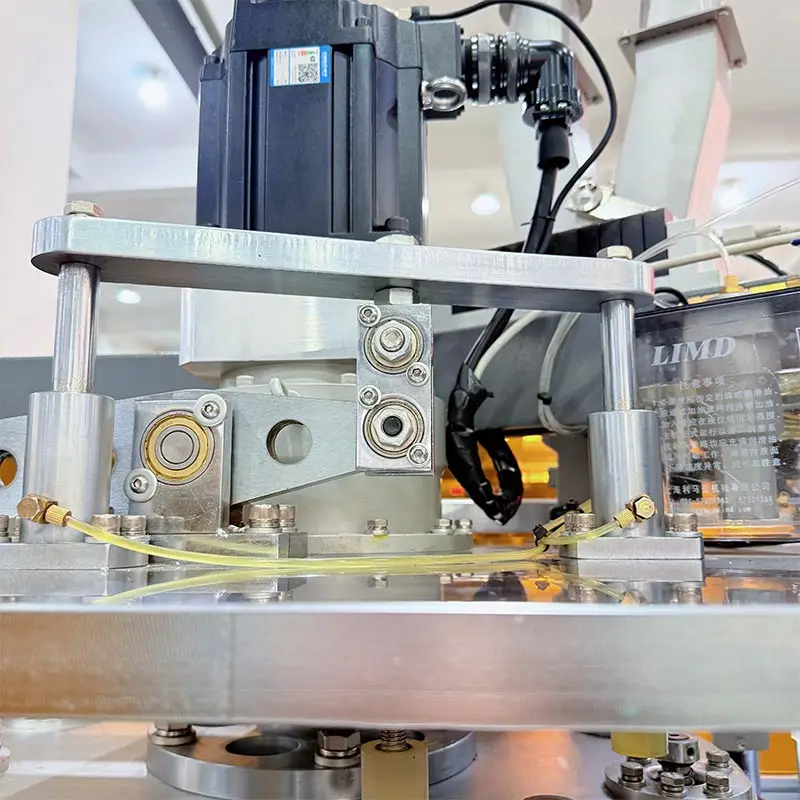

Main turnplate servo driven

Folding & Knurling

Two times curling device

Bottom cutter

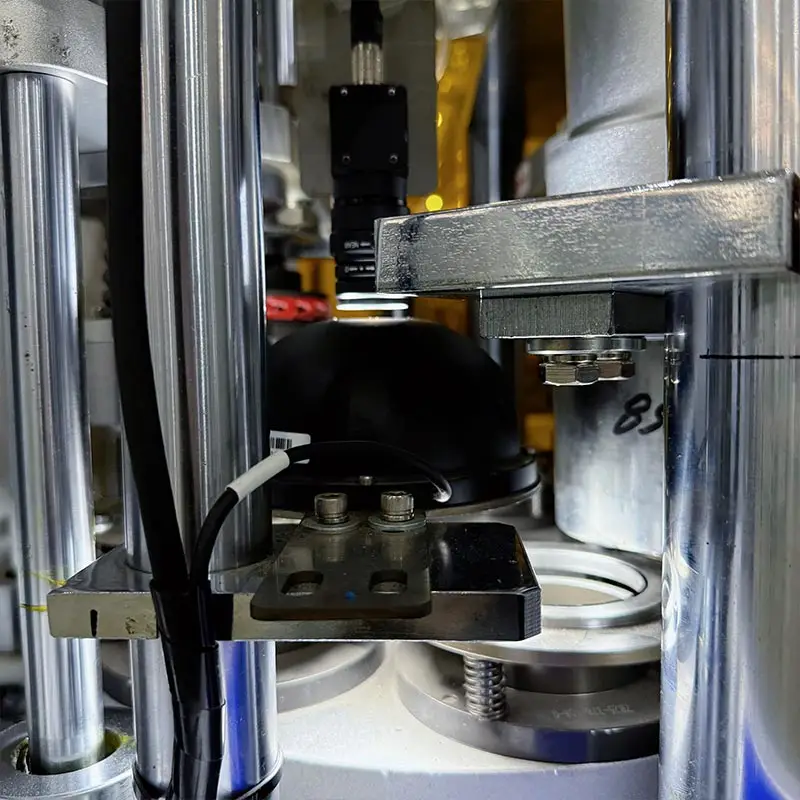

Camera detection (option )

Bottom Waste paper channel

Electricty box

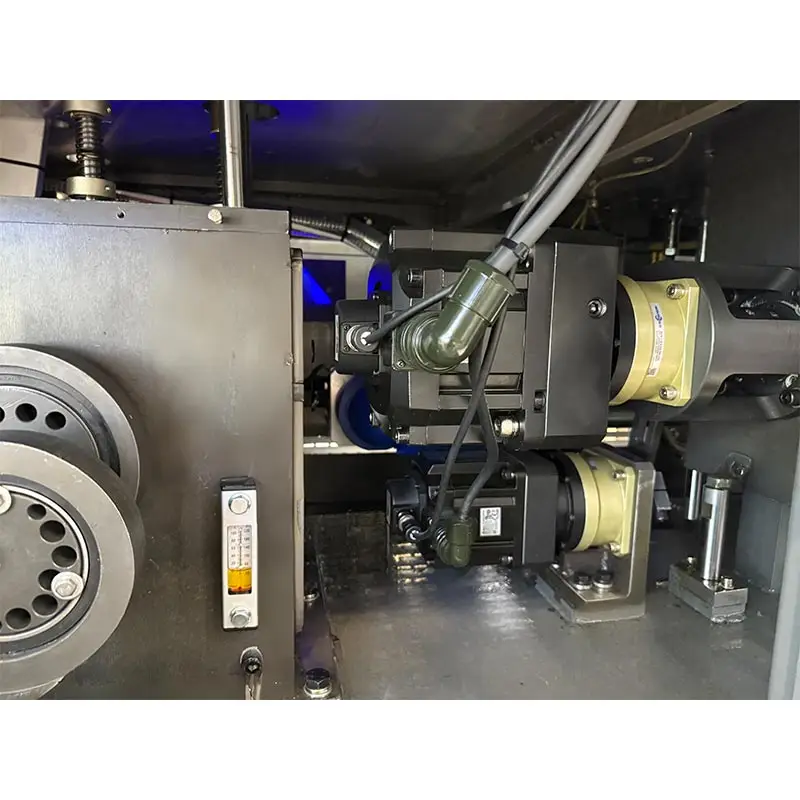

Completely oil-free, fully servo-driven motion system with 9 servo moters

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-G800-FS Full Servo Paper Cup Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-G800-FS Full Servo Paper Cup Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All paper cup forming machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-G800-FS Full Servo Paper Cup Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our paper cup forming machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
