Why Choose a Dedicated Calippo Paper Tube Machine for Frozen Treat Packaging?

Publish Time: 2026-08-06 09:37 Author: Mingguo Visit: 11

You're producing ice cream, sorbet, or frozen juice treats in the popular tube-shaped format. The packaging needs to be consistent, food-safe, and produced at a speed that keeps up with peak summer demand. A calippo paper tube machine does exactly that: it takes PE-coated paper and forms it into precision tubes—from flat paper roll to finished tube—in one continuous operation. The MG-J600 is a dedicated ice tube forming machine capable of producing 60-80 tubes per minute, with diameters from 42mm to 55mm and lengths from 120mm to 200mm. This guide covers the key capabilities—production speed, tube size flexibility, sealing technology, and control features—so you can evaluate whether a dedicated Calippo tube forming system is the right fit for your frozen novelty production line.

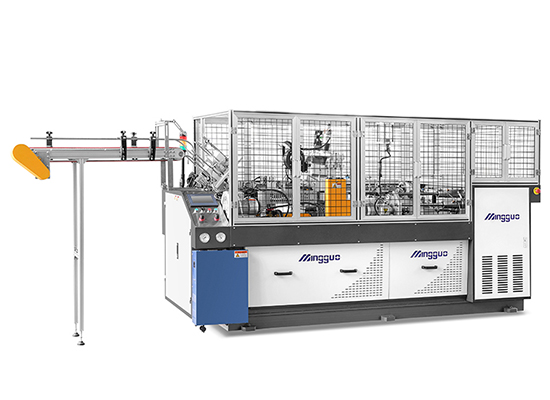

What the MG-J600 Does – From Paper Roll to Finished Tube

The MG-J600 is a specialized forming machine developed specifically for ice cream paper tubes commonly found in the market. It takes PE-coated paper—single or double coated—and transforms it into finished tubes through a series of automated stations. The process runs continuously from a roll of paper, with each station performing its function in sequence: paper feeding, bottom embossing, bottom cutting, side sealing, curling, and tube discharge. The machine uses an innovative vertical turntable design that prevents the cup body from falling during operation while saving working space.

The Vertical Turntable Advantage

The vertical turntable is a key differentiator. Unlike horizontal designs, the vertical configuration keeps the tube body stable throughout the forming process, preventing misalignment or falling during operation. This results in more consistent tube quality and fewer production interruptions.

Integrated Process in a Single Pass

The machine completes the entire forming process in one continuous pass: paper feeding, bottom cutting, embossing, sealing, curling, and discharge. No separate handling steps, no manual intervention—just a continuous flow from paper roll to finished tube.

Speed and Output – Production That Scales With Demand

The MG-J600 achieves a production speed of 60-80 tubes per minute. At this rate, a single machine can produce between 3,600 and 4,800 tubes per hour—or 800 to 2,000 units per hour depending on the specific configuration. This is enough to supply multiple ice cream production lines or fulfill large seasonal orders during peak summer demand.

Output That Meets Peak Season Demand

Summer creates unique challenges for frozen dessert manufacturers—demand spikes dramatically during heatwaves. The MG-J600's 60-80 pcs/min capacity ensures that you can ramp up production quickly when it matters most, without compromising quality or consistency.

Consistent Quality at Speed

Higher speeds don't mean compromised quality. Each part of the machine is equipped with optical eye detection, which monitors the entire cup-making process and stops the machine if issues are detected. This ensures consistent tube quality across every run.

Tube Size Flexibility – One Machine, Multiple Formats

The MG-J600 is designed to handle a range of tube sizes and paper specifications, giving you flexibility in your product offerings. Tube diameter ranges from 42mm to 55mm, and tube length from 120mm to 200mm. The machine accepts 150-250 GSM single or double PE coated paper.

Customizable Dimensions

The machine offers flexible production capacity to meet diverse needs for paper tube specifications, lengths, diameters, and more, providing convenience for customer customization. This means you can run different tube sizes on the same machine without changing equipment.

PE Coated Paper Compatibility

Both single and double PE coated papers are supported. Double PE coating provides better moisture resistance—essential for frozen treats that can create condensation as they thaw.

Engineering Precision – Sealing, Curling, and Bottom Formation

The quality of a paper tube depends on the precision of its sealing, curling, and bottom formation. The MG-J600 incorporates several engineering features designed specifically for Calippo-style tubes.

Swiss Heater for Stable Adhesion

The body of the tube and the bottom portion are bonded using a Swiss Leister brand heater, ensuring the stability of adhesion. This is critical for frozen treats—a weak seal means leakage, product loss, and customer complaints.

Two-Stage Curling for Strength and Appearance

The machine uses a two-stage curling process: first rotating curling for initial formation, then heating and shaping for final curing. This two-stage process improves the forming strength of the tube, tube mouth beauty, and tube size stability.

Specialized Bottom Units

The special bottom embossing unit and bottom cutting unit ensure the bottom sealing of the ice tube. A properly formed bottom prevents leaks and provides the structural integrity needed for filled frozen treats.

Control and Automation – Precision at Every Step

The MG-J600 features PLC and touch screen control for tube forming, with photoelectric eye monitoring throughout the entire failure control process. The machine also includes about 13 sensors monitoring the whole cup making process.

Optical Eye Detection

Photoelectric eyes monitor the entire forming process, automatically stopping the machine if issues are detected. This prevents waste and ensures consistent quality across every tube.

Automatic Lubrication System

The whole machine uses an automatic spray lubrication system, reducing wear on machine parts and supporting long uninterrupted operation. This reduces maintenance frequency and extends the machine's service life.

Innovation in China

The MG-J600 is the first new type of ice tube forming machine in China, representing a significant advancement in frozen novelty packaging equipment.

Key Specifications

Specification	MG-J600 Value	Why It Matters
Production speed	60-80 pcs/min	Determines throughput capacity
Tube diameter	42-55mm	Covers standard Calippo tube sizes
Tube length	120-200mm	Flexible for different product formats
Paper weight	150-250 GSM	Material flexibility
Paper type	Single/double PE coated	Moisture resistance for frozen products
Power source	380V 50HZ 3Phases	Standard industrial power
Average power	10KW	Energy consumption
Air supply	0.45-0.6Mpa, 0.4cbm/min	Compressed air requirement
Total weight	2000KG	Installation and handling
Machine package size	2800×1500×1700mm	Floor space requirement
Collection table	1300×1000×1700mm	Finished product collection

What Frozen Dessert Producers Ask About Calippo Tube Forming Machines

What tube sizes can the MG-J600 produce?
The machine produces tubes with diameters from 42mm to 55mm and lengths from 120mm to 200mm, covering standard Calippo-style tube formats.

What is the production speed?
The MG-J600 runs at 60-80 tubes per minute, producing between 3,600 and 4,800 tubes per hour.

What paper types does it support?
The machine handles 150-250 GSM single or double PE coated paper. Double PE coating provides better moisture resistance for frozen applications.

What makes the MG-J600 different from standard paper cup machines?
The MG-J600 is specifically designed for Calippo-style tube forming, with a vertical turntable design, two-stage curling, and specialized bottom sealing units that ensure tube integrity for filled frozen treats.

What warranty is offered?
A one-year warranty is offered from the shipment date. The warranty covers the entire machine.

Ready to Scale Your Frozen Treat Packaging Production? Let's Find the Right Fit

Selecting a Calippo paper tube machine comes down to three factors: production speed (match your volume), tube size range (match your product formats), and paper compatibility (match your material requirements). Contact Mingguo for a customized quote → —their team can help you select the right MG-J600 configuration for your specific frozen dessert packaging needs.

Mingguo Machinery specializes in the development and manufacturing of paper cup and paper tube forming equipment. The MG-J600 Ice Tube (Calippo) Forming Machine features an innovative vertical turntable design, Swiss Leister heater for stable adhesion, two-stage curling for improved forming strength, PLC and touch screen control with 13 sensors for monitoring, and automatic spray lubrication. It produces 60-80 tubes per minute with diameters of 42-55mm and lengths of 120-200mm, supporting 150-250 GSM single or double PE coated paper. Mingguo provides comprehensive technical support, installation guidance, and after-sales service. Connect with Mingguo to discuss your tube size requirements, production volume targets, and material specifications.
