100 Cups per Minute with a Paper Handle – What a Paper Cup With Handle Machine Needs to Deliver

Publish Time: 2026-04-13 16:29 Author: Mingguo Visit: 8

You’ve seen them in coffee chains and bubble tea shops: paper cups with an integrated paper handle. No plastic carrier, no double cupping, no heat sleeve. Just a clean, eco‑friendly cup that feels comfortable to hold. But adding a handle to a paper cup isn’t a simple add‑on. The machine must form the cup, cut and fold a paper handle strip, apply it to the sidewall at exactly the right height, seal it, and then curl the rim – all while running at commercial speeds. This guide explains how a modern paper cup with handle machine achieves 100 cups per minute, the multi‑station design that makes it possible, and what to look for when buying one.

The Evolution: From Three‑Turn‑Plate to an Integrated High‑Speed Platform

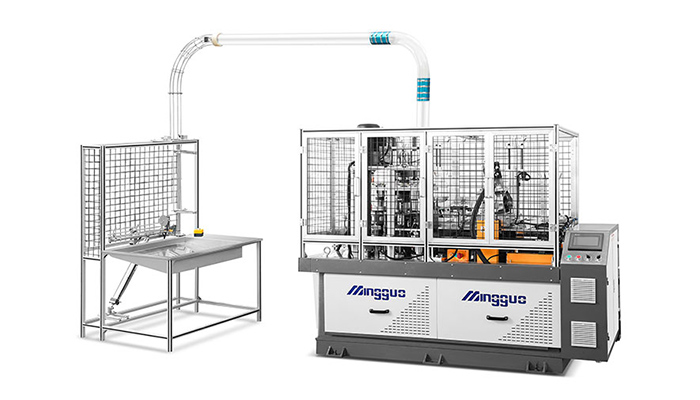

Older paper cup machines relied on three separate turntables. The MG HC600S represents a complete redesign.

What the old three‑turn‑plate design couldn’t do well

Traditional machines had distinct stations for feeding, side seaming, bottoming, curling, and ejecting. Adding a handle meant an extra manual step or a separate attachment machine. Production speed was limited to 40‑60 cups per minute, and handle alignment often drifted. Changeovers between cup sizes were slow and required mechanical adjustments across all three plates.

How the new integrated design reaches 100 cups per minute

The MG HC600S combines all processing steps into a single, continuous flow: paper feeding, side seam sealing, bottom cutting, lubricating, heating, knurling, curling, collecting – plus an automatic handle applicator. The multi‑station design allows several operations to happen at the same time. While one station applies a handle, another seals a bottom, and a third curls a rim. No waiting between steps. The result is a sustained 100 cups per minute, which means 48,000 cups per 8‑hour shift – enough output for a regional coffee chain or a high‑volume bubble tea franchise.

A paper cup with handle machine running at this speed can pay for itself in less than a year for a busy converter.

Key Technical Specifications – What the Numbers Actually Mean for Your Production Floor

Here is the single table you need to evaluate a paper cup with handle line. All other details derive from these core parameters.

Parameter	MG HC600S Value	Why It Matters for Your Business
Production speed	100 cups per minute	One machine can replace two older lines; fast ROI
Paper coating	Single or double PE	Handles both hot drinks (double PE) and cold drinks (single PE)
Cup types	Beverage cups, ice cream cups, coffee cups, bubble tea cups	Versatile across the fastest‑growing food service segments
Processing steps	Feeding, side sealing, bottom cutting, lubricating, heating, knurling, curling, collecting + handle applicator	All‑in‑one; no need for separate handle attachment equipment
Handle attachment	Automatic cutting + sealing	Eliminates manual handle placement; reduces labor cost
Base design	Upgraded from three‑turn‑plate	Proven reliability with modernized speed and precision

A paper cup with handle machine with these specifications can run for two shifts with minimal downtime, producing consistent cup quality and secure handles.

How the Automatic Handle Applicator Works – Without Slowing the Line

The handle is not an afterthought. It is fully integrated into the machine’s core workflow.

Handle material and preparation

The handle is made from paperboard – typically the same PE‑coated stock as the cup body or a slightly thicker paper. It is fed from a separate roll or a stack of pre‑cut blanks. The machine pulls the material, cuts it to the correct length, and folds it into a U‑shape or a flat strip, depending on the design.

Precision cutting and folding

A servo‑driven cutting unit ensures each handle has exactly the same dimensions. The folded handle is then transferred to the cup sidewall at the exact height – typically just below the rim curl. Registration sensors verify position before sealing.

Sealing the handle to the cup

The handle is bonded to the cup using heat and pressure. Because the cup and handle are both PE‑coated, the same heat‑sealing principle that seals the side seam also attaches the handle. No glue, no additional adhesive. The seal is strong enough to hold a full hot beverage.

Integration with the cup forming cycle

The handle applicator operates in parallel with the cup forming stations. While the cup body is being sealed and bottomed, the handle is being cut and folded. They meet at the precise moment for attachment. This parallel processing is why the machine can run at 100 cups per minute without slowing down for handle application.

Cup Types You Can Produce – From Coffee to Bubble Tea

The MG HC600S is not limited to one cup style. It handles a wide range of coated paper cups.

Coffee cups

Single‑wall cups for hot coffee. Single PE coating is sufficient for short‑duration heat. The paper handle makes them easy to carry without a sleeve. Sizes from 8oz to 16oz are common.

Bubble tea cups

Wider diameter cups with dome lids. Double PE coating prevents condensation from leaking. Handles are essential for carrying heavy 20oz drinks with tapioca pearls. The machine’s handle applicator can position the handle to balance the cup.

Ice cream cups

Cold cups for gelato or frozen yogurt. Single PE coating is enough. Handles make it easier for customers to carry without a tray. The machine can run at full speed because no heat‑resistant layer is needed.

Beverage cups for takeout

Generic cold cups for iced coffee, lemonade, or soda. The handle adds a premium feel and reduces the need for carrier bags.

A paper cup with handle machine that can switch between these cup types with quick mold changes gives a converter flexibility to serve multiple market segments.

What Makes the Handle Secure? – A Closer Look at Sealing and Placement

The handle must not detach when a customer lifts a full cup. Here’s how the machine ensures reliability.

Sealing temperature and pressure

The handle is attached using the same principle as the side seam: heat melts the PE coating, pressure bonds it. The sealing head is shaped to match the handle’s contact area. Temperature is controlled to within ±2°C to avoid burning the paper or under‑sealing.

Handle alignment

Misaligned handles cause cups to tip when lifted. The machine uses optical sensors to check handle position before sealing. If a handle is out of alignment, the cup is automatically rejected.

Pull strength testing

A quality machine allows operators to perform periodic pull tests. A handle should withstand at least 2‑3 kg of force before detaching. Mingguo’s handle applicator is designed to meet or exceed this standard.

Energy, Maintenance, and Spare Parts

A high‑speed machine running 100 cups per minute needs regular care.

Power consumption

The MG HC600S draws about 15‑18 kW at full load. Over a two‑shift day, energy cost is roughly $30‑40 depending on local rates. Insulated heating zones and servo drives help keep efficiency high.

Daily and weekly maintenance

Daily: Clean sealing bars, check handle applicator for debris, inspect ultrasonic or heating elements.
Weekly: Lubricate moving parts, verify sensor alignment, check belt tension.

Spare parts kit

Mingguo provides a first‑year kit with wearing parts: sealing bars, cutting dies, heater cartridges, and handle applicator blades. After the first year, replacements are available from stock.

Who Needs a Paper Cup With Handle Machine?

Business type	Typical product	Why a handled cup fits
Coffee chain (medium to large)	12‑16oz hot coffee cups	No need for cardboard sleeves; better brand image
Bubble tea franchise	20‑24oz wide cups	Handle balances heavy drinks; reduces spillage
Ice cream parlor	8‑12oz gelato cups	Easier for customers to carry without a tray
Catering / takeout	Hot soup or chili cups	Handles make transport safer
Eco‑conscious brand	Any beverage	Paper handle replaces plastic carrier; compostable

Get a Custom Configuration

Every cup size and paper type is different. Mingguo can provide a machine setup tailored to your target cup dimensions, handle style, and output needs. Ask for a video demo running your specific cup size and paper.

A paper cup with handle machine that integrates automatic handle application, multi‑station design, and 100 cups per minute speed will transform your production line.
