Can a Double Wall Cup Machine Run Efficiently All Day?

Publish Time: 2026-08-26 15:51 Author: Mingguo Visit: 1

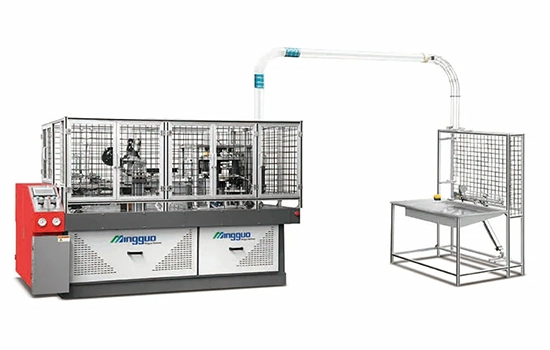

You're running a double wall cup production line, and the machine needs to deliver consistent output across two or three shifts. A double wall paper cup machine that slows down as the day wears on, or that requires frequent stops for adjustment, directly impacts your bottom line. The MG-HC800 paper cup sleeve machine was engineered for continuous efficient operation: 90-120 sleeves per minute, servo cup dropping that maintains precision throughout the run, and a patented bottom rolling device that delivers 5 times the embossing force without additional energy consumption. This article examines what makes this machine capable of sustained daily efficiency—from the mechanical design that reduces wear to the control system that maintains consistent settings over extended runs.

How to Gauge the Real Output of Your Sleeve Production

Understanding Speed Versus Sustainable Throughput

Q: What's the machine's peak speed?
A: The MG-HC800 runs at 90-120 sleeves per minute. This is the sustained speed, not a peak that drops off as the machine warms up. The combination of servo control, sturdy mechanical design, and PLC automation ensures consistent output across the entire production shift.

Q: How does the machine maintain quality at speed?
A: The servo cup dropping device ensures each sleeve is positioned precisely over the inner cup, maintaining quality at full production speed. The PLC control system holds settings consistently, eliminating the gradual drift that can occur with mechanical controls.

Comparing Servo-Driven and Mechanical Cup Dropping

The MG-HC800 uses servo cup dropping rather than traditional mechanical mechanisms. This choice has a direct impact on both output quality and long-term reliability.

Why Servo Control Means More Reliable Forming

Mechanical cup dropping systems rely on cams and linkages that can wear or drift over time. The servo system uses precise electronic control, ensuring that each sleeve is dropped at the exact moment and in the exact position required. This eliminates the misalignment rejects that plague older machines.

Less Wear on Critical Components

Servo control applies force precisely where and when it's needed. This reduces mechanical stress on the machine's components compared to systems that rely on constant mechanical engagement. Less stress means longer component life and fewer unexpected stops.

The Mechanical System That Maintains Precision Over Long Runs

The MG-HC800 uses three strong shafts and two high-quality springs to achieve stable operation. This is the mechanical foundation that prevents the gradual loss of precision that affects less robust machines.

Why Three Shafts Outperform a Single Drive

Three shafts distribute mechanical load evenly, preventing uneven wear that would otherwise lead to alignment issues. Even distribution of stress means the machine maintains its tolerances over longer periods, reducing the need for frequent recalibration.

Springs That Provide Consistent Pressure

The two high-quality springs maintain consistent sealing pressure across the full operating range. Consistent pressure means consistent sleeve quality—no weak seals, no intermittent rejects.

Sealing and Pattern Quality — Where the Patent Makes the Difference

The MG-HC800 features a patented bottom rolling device that provides 5 times the embossing force of traditional rolling devices. This isn't just a marketing claim—it has measurable effects on product quality.

Sharp Patterns That Signal Quality

The increased embossing force produces clear and uniform patterns on the cup bottom. For double wall cups, the bottom pattern is the visible quality indicator that customers notice. Sharp, consistent patterns signal a well-made product.

Better Sealing Means Lower Leakage

The patented device also provides low leakage sealing. Combined with the retractable knife that ensures uniform bottom wrinkles, this results in cups that hold hot or cold beverages without leaking.

Control and Monitoring Systems That Prevent Problems

The MG-HC800 is controlled by PLC with multi-position inspection and an automatic alarm stop system. These aren't optional extras—they're features that directly affect daily efficiency.

Catching Problems Before They Stop Production

The multi-position inspection system monitors critical points in the machine. When it detects cup bottom shortage or accumulation during manufacture, it gives an automatic alarm. This means problems are caught early, before they escalate into major stops.

Consistent Operation Without Drift

PLC control means you set the parameters once and the machine holds them across the entire run. No drift, no guesswork, no constant adjustments—just consistent output.

Specifications at a Glance — MG-HC800

Parameter	MG-HC800 Specification
Cup Capacity	4-16oz (100-450ml), mold exchangeable
Top Diameter	55-90mm
Height	60-135mm
Bottom Diameter	55-75mm
Paper Specification	150-350 GSM, single/double PE coated
Production Capacity	90-120 pcs/min
Voltage	220V/380V 50HZ 3Phases
Average Power	8KW
Air Supply	Air pressure:0.4 Mpa, Air out-put:0.3cbm/min
Total Weight	2500KG
Dimensions	2600×1100×1800mm
Warranty	1 year from shipment date

What the MG-HC800 Brings to Your Production Line

The MG-HC800 serves multiple applications where double wall sleeve production is required:

Coffee Shop and Café Supply

Coffee chains require cups that keep drinks hot and comfortable to hold. The MG-HC800 produces sleeves that fit precisely, ensuring the finished cups meet the quality standards that coffee shop chains demand.

Tea and Bubble Tea Applications

The 4-16oz range covers most tea and cold drink serving sizes, including bubble tea cups and specialty beverage containers.

Corrugated and Specialty Cups

The machine is also used for corrugated paper cups, which provide additional insulation and structural strength for both hot and cold beverages.

Straight Answers on Double Wall Sleeve Machines

Q: What is the production speed of the MG-HC800?

A: The machine delivers 90-120 sleeves per minute.

Q: What cup sizes can the machine produce?

A: The MG-HC800 handles 4-16oz (100-450ml) cups with interchangeable molds.

Q: What paper materials does the machine process?

A: The machine processes 150-350 GSM paper, single or double PE coated.

Q: What is the power consumption?

A: The machine uses an average of 8KW.

Q: How does the servo cup dropping device improve performance?

A: The servo cup dropping device makes double wall forming more stable and efficient, ensuring precise sleeve positioning.

Q: What is the warranty period?

A: The machine comes with a 1-year warranty from the shipment date.

Request a Quote for Your Double Wall Production Line

A double wall paper cup machine that combines servo precision, stable mechanical design, and reliable sealing technology is the foundation of any efficient double wall cup production operation. The MG-HC800 delivers 90-120 sleeves per minute, servo cup dropping for precise forming, PLC control for consistent operation, and a patented bottom rolling device with 5 times the embossing force of traditional systems—all in a machine built for 4-16oz cups with interchangeable molds.

Whether you're producing coffee cups, tea cups, or corrugated cups, the MG-HC800 offers the speed and reliability that cup manufacturers need. With a 1-year warranty, pre-delivery adjustment, and on-site installation support available, it's built for long-term production.

Contact the manufacturer for a quote or configuration consultation → their team can help you select the right mold configuration and options for your specific cup requirements and production targets. Get a double wall sleeve machine that delivers stability and reliability every shift.
