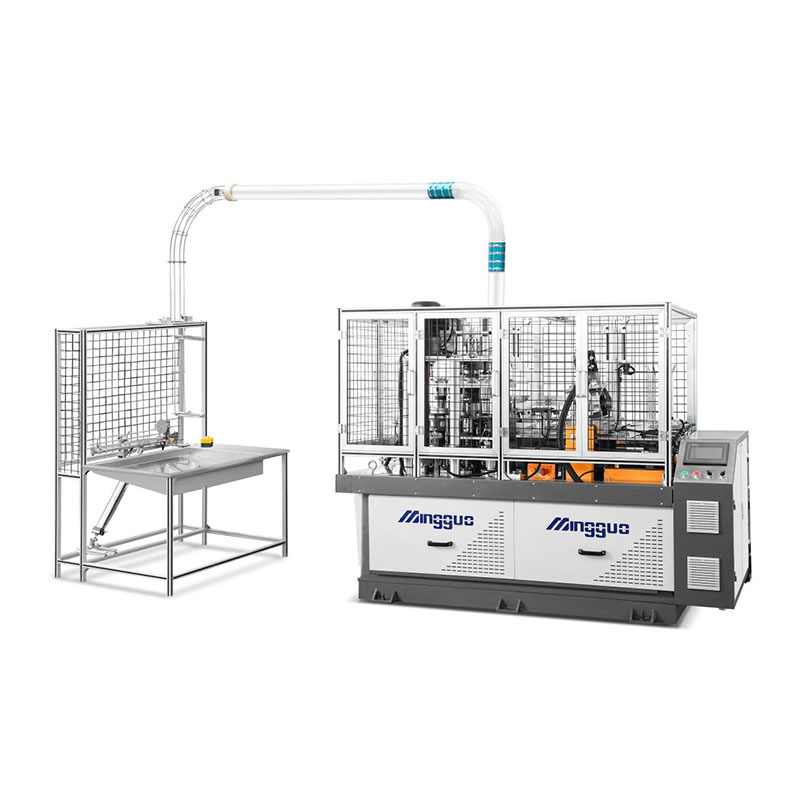

Double Side PE Coated Paper Cup Making Machine

Name: Double Side PE Coated Paper Cup Making Machine
Brand: Mingguo
SKU: 00043
Rating: 4.1 (72 reviews)

The Double Side PE Coated Paper Cup Making Machine is suitable for 150-350 GSM single/double-sided PE coated paper specifications, with a production capacity of 80-90 paper cups per minute. PE Coated Paper Cup Making Machine produces high-quality cups that are suitable for hot beverages. These cups are sealed with a copper heating rod, ensuring a secure seal and excellent insulation.

Specifications:

4-12oz (100-350ml) (mold exchangeable)

Top: 55-90mm

Height: 60-110mm

Bottom: 55-75mm

Inquire Now

Double Side PE Coated Paper Cup Making Machine

Product Applications

PE Coated Paper Cup Making Machine produces high-quality cups that are suitable for hot beverages. These cups are sealed with a copper heating rod, ensuring a secure seal and excellent insulation.

Mingguo Paper Cup Maker is mainly used in the paper cup manufacturing industry, including fast food shops, coffee shops, beverage shops, restaurants, supermarkets and other places. It is often used to hold hot drinks, cold drinks, juice, milk tea, ice cream and other food and beverages.

*The finished product of the smart paper cup machine can be customized.

Main Parts

Strengths of Paper Cup Maker

1. The knurling device used in this disposable paper cup forming machine is designed with high pressure, exceeding that of traditional knurling machines by over 10 times.

2. The cups produced by this high-quality paper cup maker are sealed with a copper heating rod, making them suitable for hot beverages only.

3. This Noiseless Automatic Paper Cup Machine boasts features such as high precision and excellent durability, Which is suitable for 220V/380V 50HZ three-phase voltage and can operate stably. Whether it is production speed or quality, this machine can meet your needs.

4. The retractable knife ensures uniform wrinkles at the bottom of the cups, resulting in minimal leakage and extended usability. Moreover, the punching holder does not need to be disassembled when changing molds, minimizing damage to the machine and saving significant time during the replacement process.

5. This high-efficiency paper cup machine is equipped with mechanical arms for collecting and flipping cups, reducing both working time and energy costs.

Product Specifications

Model	MG-C600
Paper Cup Specification	4-12oz
	(100-350ml) (mold exchangeable)
	Top: 55-90mm
	Height: 60-110mm
	Bottom: 55-75mm
Paper Specification	150-350 GSM single/double PE coated paper
Production Capacity	80-90 pcs/min
Voltage	220V/380V 50HZ 3Phases
Average Power	7.5KW
Air Supply Requirement	Air pressure:0.4Mpa Air out-put:0.4cbm/min
Total Weight	2500KG
Dimensions	2520x1350x1750mm

Outstanding Advantages

The whole machine uses 7 senors to detect any malfunction and ensure the output of cups with high quality.

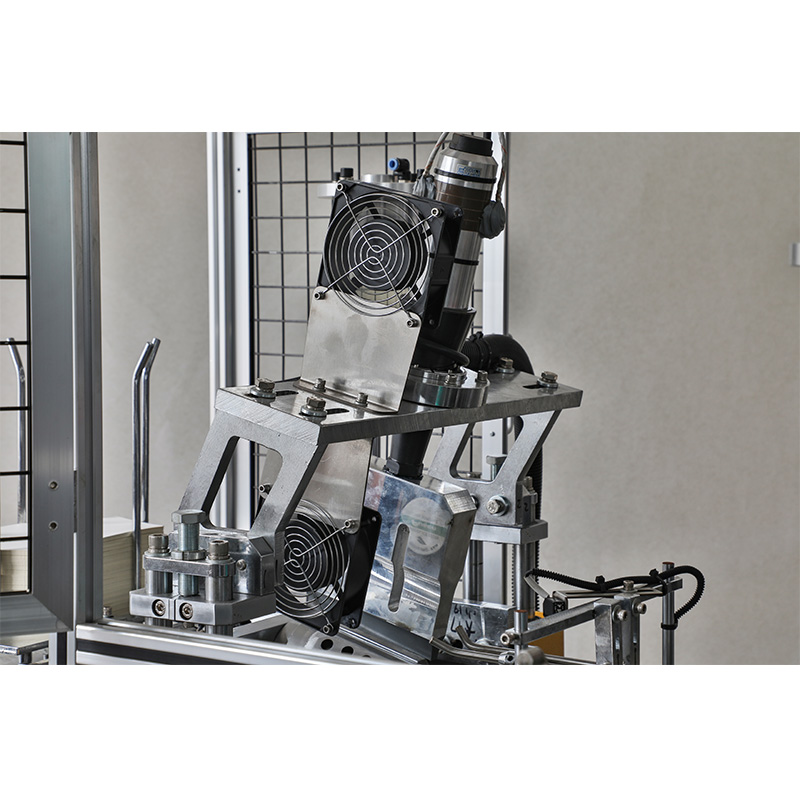

Ultrasonic is applied to seal single or double PE coated paper cups.

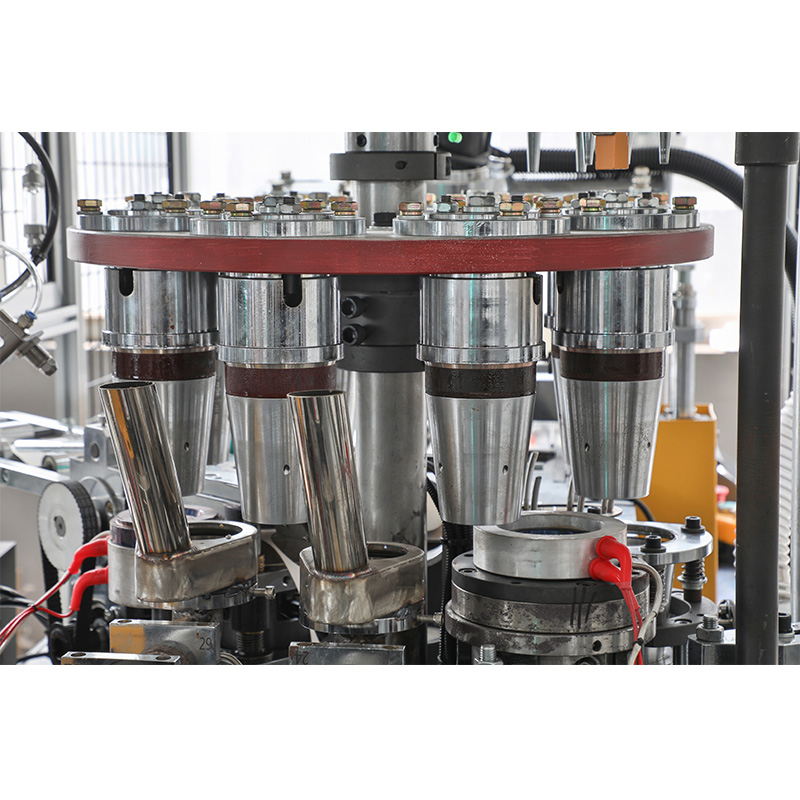

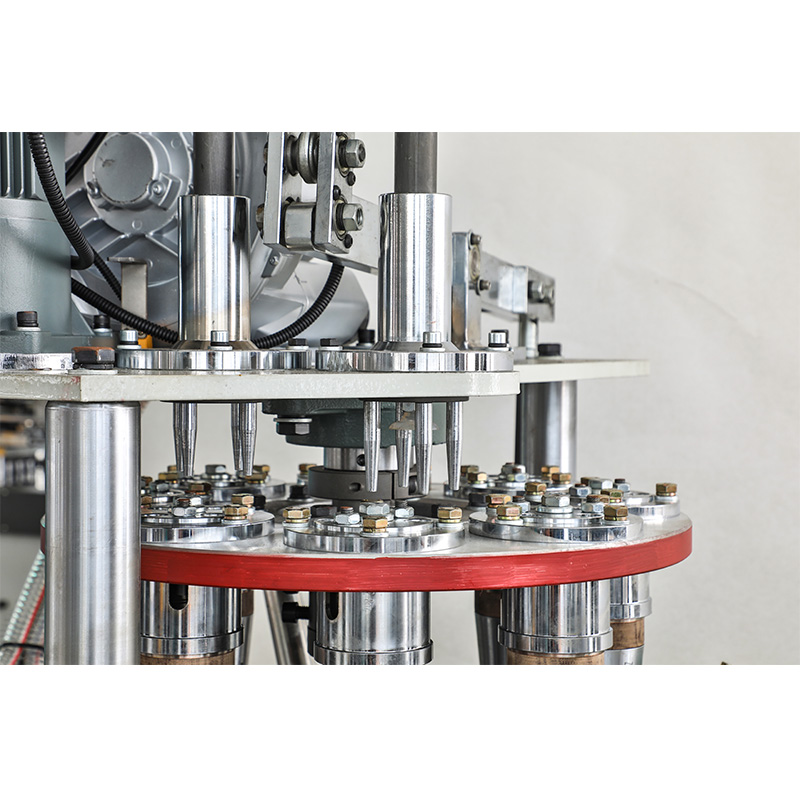

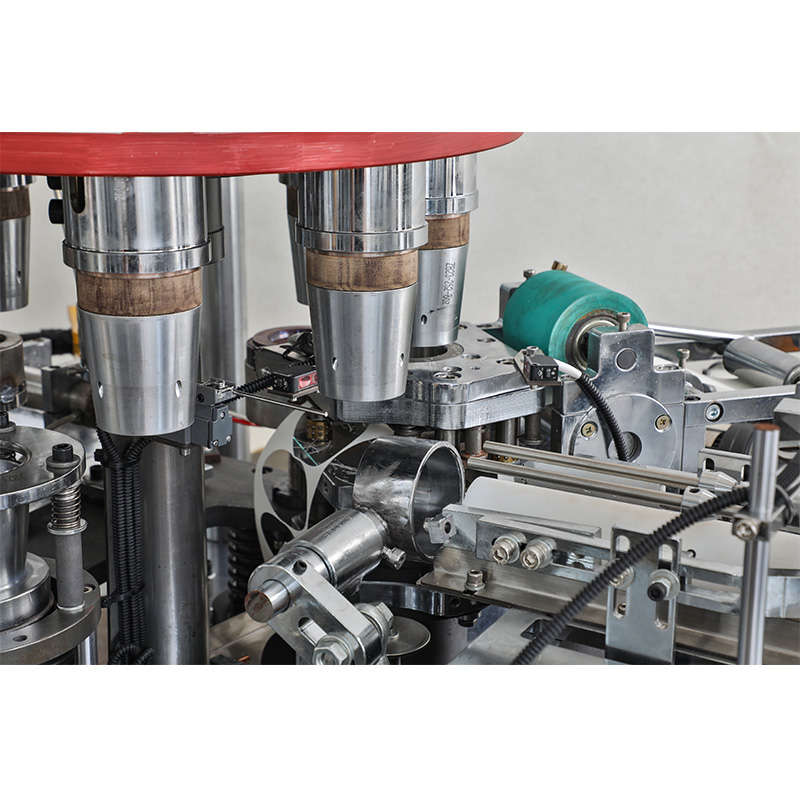

The rotating cup we use the Stainless steel material, compared with other materials, has a long service life.

The Leister heater is purchased for sealing cup body and bottom. This heating device raises the heating effect and leads to knurling of good quality.

Compared with the low-speed machine, the bottom folding of the sealing effect is much better.

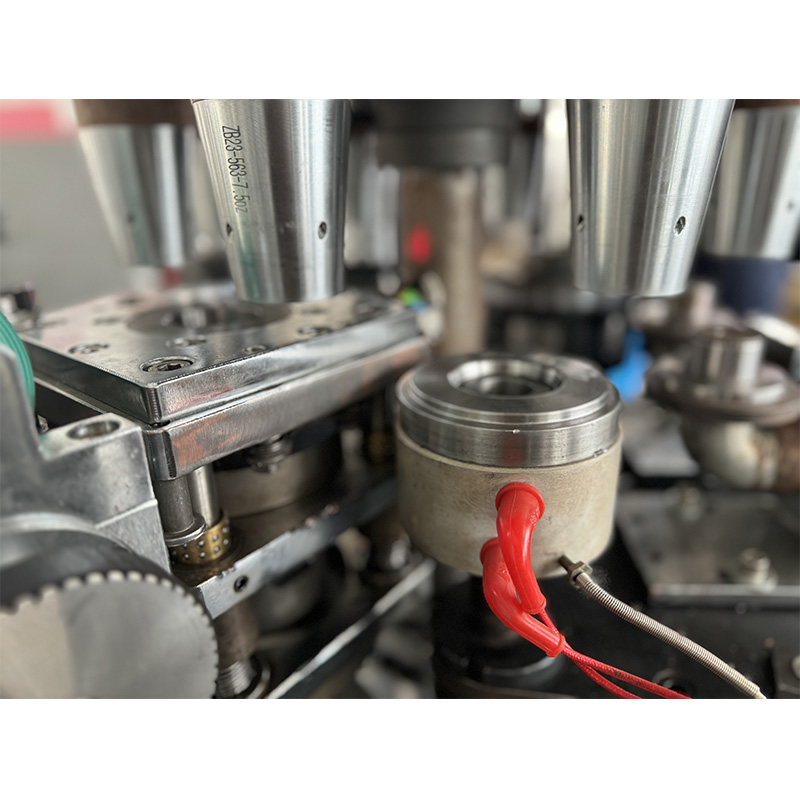

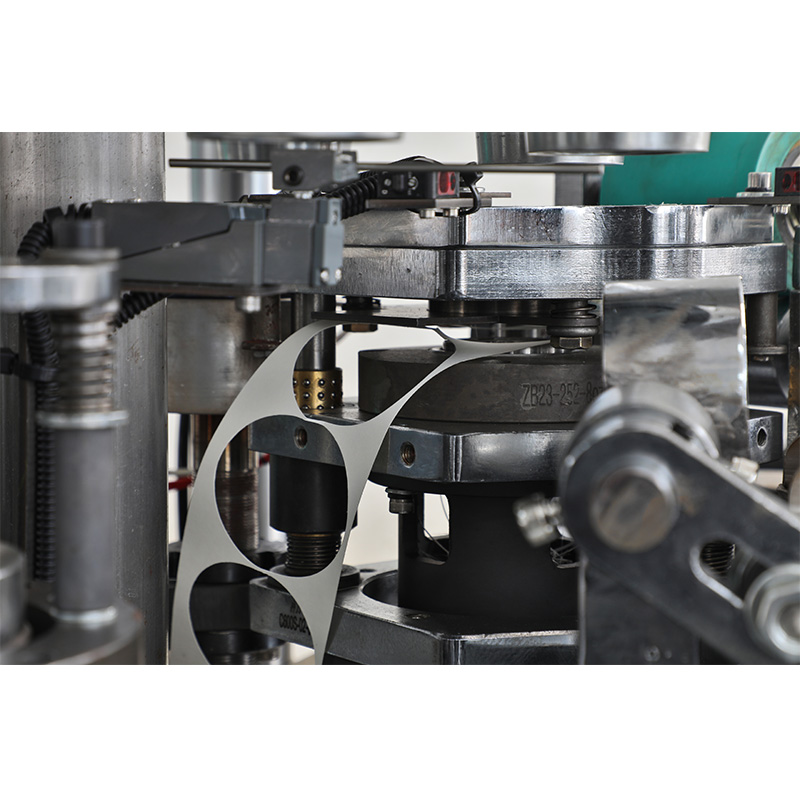

The installed stretchable knife highly reduces the cutting time and cup bottom wastem,also it is easy to replace.

This servo motor greatly raises the paper feeding efficiency and much more stable.

In order for good quality, all molds are produced by modern CNC processing machines.And the machine occupies a small area and it is easy to operate.

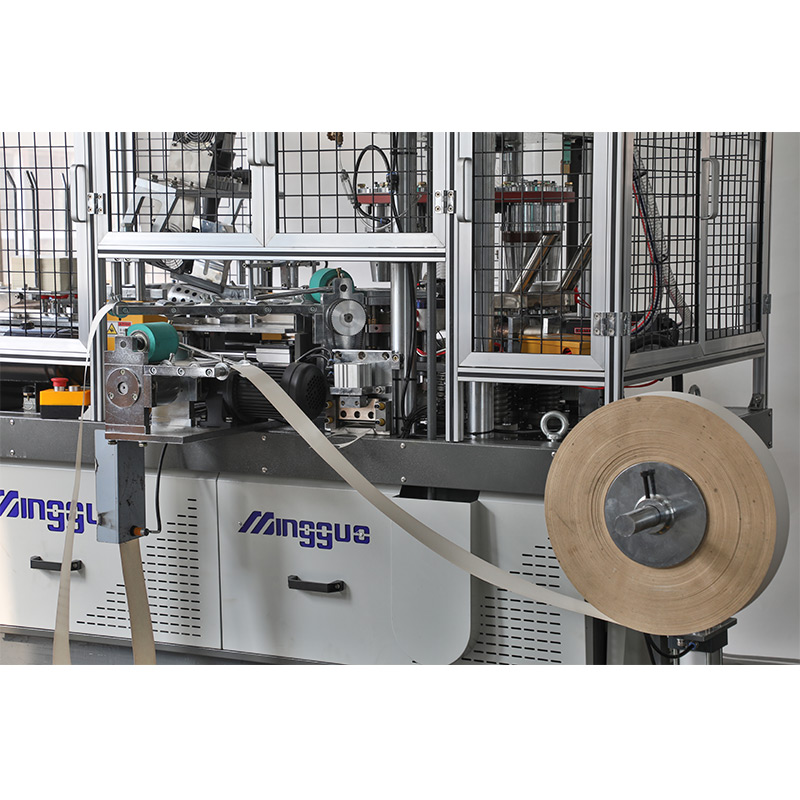

The roll for bottom cup feeding.

Maintenance & Warranty Guide

Maintenance

Maintenance of Double Side PE Coated Paper Cup Making Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the horizontal paper cup machine. Greasy dirt should be removed from the paper, die and roller. The PE Coated Paper Cup Making Machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the Double Side PE Coated Paper Cup Making Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All paper cup machine are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The Double /single Side PE paper cup machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
